Bondbased peridynamics, a survey prospecting nonlocal theories of fluiddynamics
Advances in Continuous and Discrete Models volume 2022, Article number: 60 (2022)
Abstract
Peridynamic (PD) theories have become widespread in various research areas due to the ability of modeling discontinuity formation and evolution in materials. Bondbased peridynamics (BBPD), notwithstanding some modeling limitations, is widely employed in numerical simulations due to its easy implementation combined with physical intuitiveness and stability. In this paper, we review and investigate several aspects of bondbased peridynamic models. We present a detailed description of peridynamics theory, applications, and numerical models. We display the employed BBPD integral kernels together with their differences and commonalities; then we discuss some consequences of their mathematical structure. We critically analyze and comment on the kinematic role of nonlocality, the relation between kernel structure and material impenetrability, and the role of PD kernel nonlinearity in crack formation prediction. Finally, we propose and present the idea of extending BBPD to fluids in the framework of fading memory material, drawing some perspectives for a deeper and more comprehensive understanding of the peridynamics in fluids.
1 Introduction
Peridynamics (PD) is a nonlocal continuum mechanics theory introduced by Silling [1] to mathematically describe fracture formation and development in elastic materials. To overcome limitations imposed by the classical theory, which results inadequate in treatment of spatial discontinuities eventually occurring in material bodies, in the peridynamic equation of motion, an integral operator takes the place of spatial derivatives. The process of integration holds its consistency even with very irregular functions, so that discontinuous displacements (i.e., cracks) are still significant in the peridynamics framework. The growing interest of the scientific community in peridynamics [2] is motivated by the fact that such a theory could constitute a linking connection between atomistic theories of matter and classical continuum mechanics. Consequently, microscale phenomena, like wave dispersion [3–6], cracks [7–11], intragranular fracture [12], etc., could be modeled even in macroscopic structures by a suitable tuning of the peridynamic horizon length, which rules the extent of nonlocal interactions between a point of the body and the surrounding ones [13]. Firstly, the socalled bondbased (BB) peridynamic has been introduced in [1], where the internal forces between a point and all the other ones inside its peridynamic horizon are modeled as a central force field. We can figure such a force field as a network of bonds linking each point of the body with every point within its horizon. Then, to overcome bondbased PD modeling limitations for Poisson’s ratio [14–17] (\(1/3\) for the plane stress and \(1/4\) for the plane strain in 2D bodies, and \(1/4\) for 3D ones), a generalized peridynamics theory, statebase peridynamics, has been formulated in [18]. In this context the force exchanged between a point and another one in its horizon does not depend solely on their bond extension, but also on the deformation state of all other bonds relative to the horizon. Note that peridynamics theories differ from classical mechanics for the presence of such finiterange bonds between any two points of the material body, which is a feature that assimilates such formulations to discrete mesoscale theories of matter. In the PD framework, physical bodies are considered as formed by a continuous network of points exchanging momentum within a fixed interaction distance \(\delta > 0\), the horizon radius; this change of paradigm, much closer to molecular dynamics than macroscopic bodies one, allows us to abandon the local concept of stress tensor and move on to the concept of pairwise force (see Fig. 1a,c). In a Lagrangian framework, best suited for finite deformations, the peridynamic horizon is fixed in the reference configuration and deforms with the body [14]. Conversely, when viscoelastic materials or fluids (which are naturally subjected to very large deformations) are considered, it is more physically reasonable to maintain the PD horizon fixed in time, so that its shape never changes as the body deforms. This approach is known in the literature as Eulerian [19] or semiLagrangian [20] peridynamics.
Due to its flexibility, beyond already mentioned research fields (crack formation and propagation in elastic material, wave dispersion in material, intragranular fracture), the peridynamics nonlocal approach to discontinuities has found applications in several research areas. In geomechanics, PD has been employed in waterinduced soil cracks [21, 22], geomaterial failure [23], rocks fragmentation [24], etc. (see [25]). In biology, longrange interactions in living tissues [26], cellular ruptures, cracking of biomembranes [27], and so on [2] have been analyzed within peridynamics framework. In [28–30] a peridynamic theory for thermal diffusion has been introduced to model heat conduction in materials featuring spatial discontinuities, defects, inhomogeneities, and cracks. Advection–diffusion behavior in PD has been studied in [31] for modeling fingering phenomenon for multiphase fluids in porous media, and in [32] a constructive PD model for transient advection–diffusion problems has been presented. Being a plethora of physical phenomena modeled consistently by peridynamics, various multiphysics analysis have been performed within PD scheme, e.g., microstructural analysis [33], fatigue [34] and heat conduction [35] in composite materials, galvanic corrosion in metals [36], electricityinduced cracks in dielectric materials [37], and so forth.
Significant similarities between bondbased peridynamics theory and discrete theory of materials can be pointed out. Indeed, in discrete theories of matter, a material body is thought as formed by a discrete network of points linked with springlike bonds. Each point exerts longrange elastic interaction with all others with which it shares a bond. Thus each point belonging to this discrete network can be associated with a discrete set of finiterange interacting points, equivalent to the PD horizon (see Fig. 1b). Both in PD and discrete theories, linear and angular momentum balance is not guaranteed locally, so a process of summation for discrete network or integration for continuous one over all points that constitute the material body is necessary. Given such similarities between material PD theory and discrete one, it is not surprising that most of the scientific efforts have been directed toward a numerical implementation of the peridynamic equation. Apart from PD theory, discontinuities formation and development in material structures have been more or less satisfactory addressed by enhanced versions of classical continuum mechanics numerical methods (like smoothed particle hydrodynamics (SPH) [38, 39], extended finite element (xFEM) [40], cohesive zone (CZM) methods [41], and so on); however, peridynamics appeal stems from the lack of external criteria and adjoined degrees of freedom to the numerical schemes. Neglecting some exceptions, PD numerical analysis can be grossly divided into two macroarea, PD finite element analysis and meshfree methods or, equivalently, quadrature methods [2, 42]. Such a division is solely for summarizing purposes, and a plethora of subdivisions, parallelisms, and couplings can be found in the literature. Moreover, further numerical methods, like spectral methods [43–45], considering or neglecting the volume penalization step [46, 47], boundary element methods (BEMs) [48] have been developed recently in the context of peridynamics, enlarging the range of available PD numerical tools. In [49] a meshfree method has been developed to numerically solve the PD equation for socalled prototype microelastic brittle (PMB) materials, showing that the stability criterion for the proposed numerical scheme weakly depends on space discretization, but the results are principally dictated by the peridynamic horizon size. In [50], mathematical wellposedness of the elastic onedimensional PD Cauchy problem has been proved, and a proposed numerical quadrature method for the PD integrodifferential equation (IDE) was shown to converge to analytical solutions both for continuous and discontinuous initial conditions. Convergence in meshfree peridynamics simulations has been analyzed in [51] for 1D, 2D bondbased PD, and 3D statebased PD, considering static problems; convergence of the numerical scheme, under mesh refinement (δ kept constant), to a manufactured nonlocal analytical solution has been shown. Two methods for mitigating the socalled partial volume effect, i.e., the intersection discrepancy between the circular/spherical shape of the PD horizon and the polygonal shape of grid cells have been proposed, one based on more accurate analytic calculations of such intersection contribution and the other based on employing compactly supported smooth micromodulus functions, i.e., functions vanishing at the horizon boundary, so that the intersected volumes contribution is minimized. In [52], close connections between peridynamics and classical meshfree methods have been established. Statebased PD is shown to be a numerically faster case of the socalled reproducing kernel particle methods (RKPMs), so that the same approach employed in RKPM boundaries treating could be extended to statebased PD, developing the reproducing kernel peridynamics. Mesh refinement strategy for numerical analysis of 1D peridynamic elastic bodies has been introduced by [53]; convergence of the numerical solution to the classical elastic one has been proven for vanishing PD horizon (\(\delta \rightarrow 0\)) and compared for various employed micromodulus function shapes; the socalled visibility criterion was introduced as a refinement approach.
It is a wellknown fact that in correspondence to the interface between refined and coarsen mesh regions, spurious phenomena like volume losses, ghost forces, and surface softening may occur [54–56]. In [57] the concept of dual horizon has been firstly introduced: the total internal force acting at a point of the body is split between a reaction force component due to the interactions of a point with its neighborhood (because of Newton’s third law) and an active force component exerted on the point by its dual horizon. In such a way, peridynamics forces are defined consistently also in correspondence with refined mesh interfaces, where different horizon length coexists. The dual horizon concept has been applied in [58] to discretized bondbased PD, together with Voronoibased adaptive mesh refinement, showing good agreement with standard peridynamics test cases. In [59] a careful approach is adopted in mesh adaptive refinement by the introduction of fictitious nodes near the interface region between the coarse and refined mesh. As a result, spurious phenomena are considerably reduced. In [60], mesh influence on PD numerical solution has been explored in a bondbased PD framework. The onset of periodic patterns in the integration error for 1D configuration, accuracy loss caused by perturbations of quadrature points location in 2D configuration, and unrealistic crack patterns in 3D impact simulations have been observed and directly linked to grid Cartesian structure and simplistic quadrature strategies, pointing out that accurate discretization schemes must be employed for preventing mesh sensitivity in PD numerical simulations.
Concurrently, finite element methods (FEMs) have been extended to peridynamics theory. In [15], peridynamics extensibility to finite elements method coding has been proved and tested using ABAQUS® FEM code for impact simulations, showing great prediction capabilities. Given the wide spread of commercial FEM codes in engineering, the interest in couplings between FEM code and PD theory has rapidly increased. In [61] a coupling between FEM and peridynamics has been carried out to take advantage of the peculiarities of both FEM and PD approaches, i.e., fast numerical efficiency and inherent crack prediction capabilities, respectively. The peridynamics approach has been employed only for domain portions where damage was expected to occur, whereas the FEM approach has been employed for noexpecteddamage zones. Application of continuous and discontinuous Galerkin finite element methods to PD has been explored in [62] and validated against 1D peridynamics exact solutions. In [63] a fast and costefficient Galerkin method developed in [64] has been extended and improved for 1D linearized PD static problems providing hpadaptivity, reducing computational efforts and memory usage. In [65] the implementation of a coupled PDFEM approach in commercial software ABAQUS® has been performed, employing mesh coupling techniques developed in [66–68], with good results, whereas, recently, in [69] a PDFEM coupled approach has been carried out with the commercial software ANSYS® for fatigue prediction in materials.
Although bondbased PD is the most dated formulation of peridynamics and suffers of the discussed Poisson ratio limitation, it is yet employed in several numerical studies on peridynamics. Physical intuitiveness, less computational efforts, and crack simulation stability concerning statebased PD make the choice of bondbased integral kernel still attractive [70, 71], so much that several extension of bondbased PD has been proposed (for a review, refer to [71]).
In bondbased numerical analysis, different types of integral kernels have been employed to model different kinds of nonlocal interactions, characteristics of the analyzed material, and/or structure. Various micromodulus functions have been studied and tested in the classical or linearized version of BBPD, resulting in a great variety of constitutive models. At the same time, the fundamental structure of the BB peridynamics kernel, with few exceptions [43, 44, 72], has not varied so much from the prototype microelastic brittle (PMB) material (e.g., [7, 73, 74], among others), which is fundamentally a linear model. A clarification must be done: with a linear (nonlinear) model, we design all those PD kernels that are linear (nonlinear) in the displacement variable and undergo a finite displacement; by a linearized model we mean every BBPD integral kernel linearized (via Taylor expansion) with respect to the relative displacement variable, i.e., that undergo, for small relative displacements, a firstorder approximation of the pairwise force.
The great flexibility in choosing a peridynamics kernel, however, addresses a fundamental question: how do physical principles reflect on the structure of the peridynamic equations? Or, conversely, which physic emerges according to the different kernel structures with which peridynamic theory is presented? This paper aims to shed light on the questions above to highlight common features between widespread linear and nonlinear peridynamics bondbased models for hyperelastic materials and to shape some future perspectives for a wider understanding of kernel structurerelated physical and numerical peculiarities.
Basic ideas, concepts, and physical assumptions of peridynamics bondbased theory in Lagrangian formalism are illustrated in Sect. 2. A review of bondbased integral kernels employed in the literature is presented in Sect. 3, underlying their features, structures, and properties. In Sect. 4.1 the kinematics aspects of peridynamics nonlocality property are highlighted, compared with those of classical continuum mechanics, and related to the concept of the finiteness of bond stretch. The influence of PD kernel structure on the basic requirement of impenetrability of the matter is explored in Sect. 4.2. The potential role of peridynamic kernel nonlinearity as a substitute for the classical criticalstretch criterion in material damage prediction is formulated in Sect. 4.3. Finally, in Sect. 5, some perspectives are traced for the application of bondbased peridynamic to fluids. Fluids and solids are compared in their constitutive behavior’ then by making use of the merging concept of fading memory some aspects of an extension of PD formalism toward fluids have been formally highlighted.
2 Peridynamics foundation

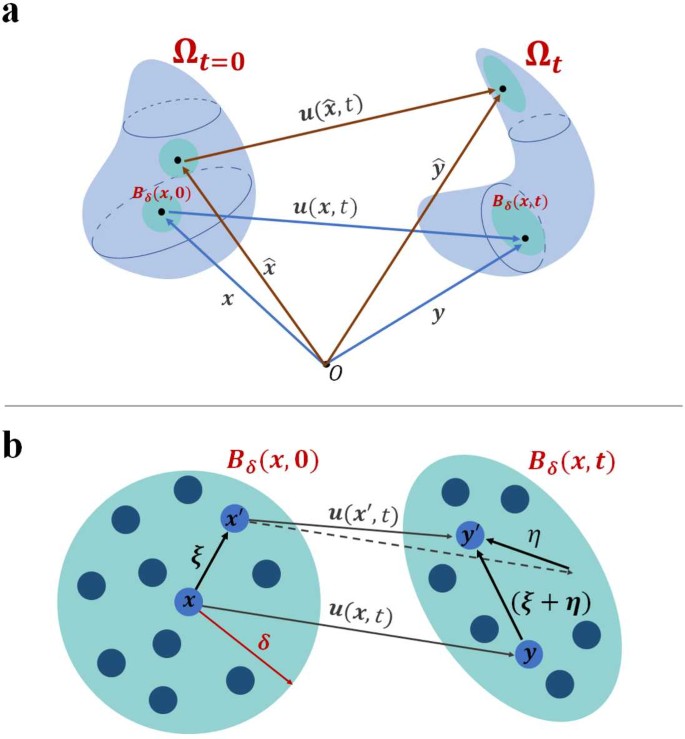

Let a subset \(\Omega \subset \mathbb{R}^{n}\) with \(n\in \{ 1,2,3 \}\) represent a material body with constant density \(\rho >0\). At time \(t=0\), such a material body encloses the volume \(\Omega _{0} \subset \mathbb{R}^{n}\) taken as its reference configuration. Note that the reference configuration may correspond either to the stressfree configuration or to a given configuration of the body taken as reference. As discussed, in the peridynamics hypothesis, each point of the material body interacts with all the points \(\mathbf{x}'\) falling within a certain neighborhood \(B_{\delta}(\mathbf{x})=\{\mathbf{x}:d(\mathbf{x},\mathbf{x}')\leq \delta \}\), where \(\delta >0\), and \(d(\cdot ,\cdot )\) is a suitable distance on \(\Omega _{0}\) (see Fig. 2b); in the literature, it is usually referenced either as the horizon (e.g., in [1, 49, 57]) or the family of x (e.g., in [14, 75, 76]). Here the kinematics of x is given in terms of its displacement with respect to the reference position, namely \(\mathbf{u}(\mathbf{x}, t): \Omega _{0} \times \mathbb{R}^{+} \rightarrow \mathbb{R}^{n}\). As a consequence, the position of x at a certain t is given by \(\mathbf{y}(\mathbf{x},t) := \mathbf{x}+\mathbf{u}(\mathbf{x}, t)\) (see Fig. 2a). Moreover, for each couple of interacting points, the length of the pairwise bond relatively to the initial configuration is tracked in time by the relative strain
where \(\cdot  \) is the Euclidean norm. Such pairwise bonds length varies in time responding to the force per unit volume squared \(\mathbf{f}(\mathbf{x}',\mathbf{x},\mathbf{u}'(\mathbf{x}),\mathbf{u}( \mathbf{x}),t)\). Note that the dependence of u on t is omitted to simplify the notation. Alongside f, an external forcing term \(\mathbf{b}(\mathbf{x},t)\) is provided, so that the Lagrangian balance equation for the momentum of x reads
where \({\mathbf{F}}(\mathbf{x},t)\) is the sum of all internal and external perunitvolume forces acting on x:
Within the hypotheses of homogeneity of the material and invariance with respect to rigid motion, the pairwise interaction reduces to a function of \(\mathbf{x}'\mathbf{x}\) and \(\mathbf{u}(\mathbf{x}')\mathbf{u}(x)\). This momentum balance equation is enriched by initial conditions, and the Cauchy problem responding to nonlocal interactions reads
where
We consider only closed manifolds, so that no boundary conditions are required. Looking at (2.4), it is worth noting that no spatial derivatives are involved in the evolution equation of x, so the integrodifferential equation still remains valid for regions characterized by discontinuous displacements (crack, phase changing region, etc.): this represents a great advantage of the peridynamic theory of continuum.
If external forces in Eq. (2.4) are neglected, it becomes manifest that only the kernel structure of \(({\mathbf{K}} \mathbf{u})\) influences the whole problem from both mathematical and physical points of view; that is, the mathematical structure of the evolution problem, its physical coherence, and the constitutive properties of the material under consideration derive directly from the integral kernel. In the following, we investigate the properties of the integral kernel \(\mathbf{f}(\mathbf{x}'\mathbf{x},\mathbf{u}(\mathbf{x}') \mathbf{u}(x)) \) and decipher its relation with the behavior of the material. The peridynamics integral kernel is shaped up by the nature of internal forces, and, indeed, some physical constraints are required. With the intent to ease the notation, we define the following quantities (see Fig. 2b): \({\boldsymbol{\xi }} := \mathbf{x}'\mathbf{x}\) and \(\boldsymbol{\eta }:=\mathbf{u}(\mathbf{x}')\mathbf{u}(\mathbf{x})\), so that \({\mathbf{f}}(\mathbf{x}'\mathbf{x},\mathbf{u}(\mathbf{x}')\mathbf{u}( \mathbf{x})) \equiv \mathbf{f}(\boldsymbol{\xi },\boldsymbol{\eta })\).

Actio et reactio principle:
$$ {\forall \mathbf{x} , \mathbf{x}' \in B_{\delta}(\mathbf{x}):\quad \mathbf{f}(\boldsymbol{\xi },\boldsymbol{\eta })=\mathbf{f}(\boldsymbol{\xi }, \boldsymbol{\eta })} . $$(2.6)The actio et reactio principle, i.e., the third law of Newton, ensures the conservation of linear momentum of the system composed of mutually interacting particles.

Angular momentum conservation:
$$ {\forall \mathbf{x} , \mathbf{x}' \in B_{\delta}(\mathbf{x}):\quad ( \boldsymbol{\xi }+\boldsymbol{\eta }) \times \mathbf{f}(\boldsymbol{\xi }, \boldsymbol{\eta })= {\mathbf{0}}} , $$(2.7)that is, the relative deformed rayvector connecting x and \(\mathbf{x}' \) is \((\boldsymbol{\xi }+\boldsymbol{\eta })\). This condition is satisfied if and only if the pairwise force density vector has the same direction as the relative deformed ray vector,
$$ \mathbf{f}(\boldsymbol{\xi }, \boldsymbol{\eta })=f(\boldsymbol{\xi }, \boldsymbol{\eta }) (\boldsymbol{\xi }+ \boldsymbol{\eta }) , \quad \forall \boldsymbol{\xi } , \boldsymbol{\eta } , $$(2.8)with a scalarvalued function \(f(\boldsymbol{\xi }, \boldsymbol{\eta }) \).

Hyperelastic material: hyperelastic is the attribute given to a material such that
$$ \int _{\Gamma} \mathbf{f}(\boldsymbol{\xi }, \boldsymbol{\eta }) \cdot d \boldsymbol{\eta }=0 \quad \forall \text{ closed curves } \Gamma , \forall \boldsymbol{\xi }\neq \boldsymbol{0}, $$(2.9)or, equivalently, by Stokes’ theorem
$$ \nabla _{\boldsymbol{\eta }} \times \mathbf{f}(\boldsymbol{\xi },\boldsymbol{\eta })= \boldsymbol{0}\quad \forall \boldsymbol{\xi } , \boldsymbol{\eta } , $$(2.10)and, consequently,
$$ \mathbf{f}(\boldsymbol{\xi },\boldsymbol{\eta })=\nabla _{\boldsymbol{\eta }}\Phi ( \boldsymbol{\xi }, \boldsymbol{\eta })\quad \forall \boldsymbol{\xi } , \boldsymbol{\eta } , $$(2.11)where \(\Phi (\boldsymbol{\xi },\boldsymbol{\eta }) \) is a scalarvalued potential function in \(C^{2}(\mathbb{R}^{n} \setminus \boldsymbol{\{0\}} \times \mathbb{R}^{n}) \) [1]. Since the pairwise force must satisfy the angular momentum conservation, we obtain the following condition on the scalarvalued function \(f(\boldsymbol{\xi },\boldsymbol{\eta }) \):
$$ \frac{\partial f(\boldsymbol{\xi },\boldsymbol{\eta })}{\partial \boldsymbol{\eta }}=g( \boldsymbol{\xi },\boldsymbol{\eta }) (\boldsymbol{\xi }+ \boldsymbol{\eta }). $$(2.12)Integrating both sides of the equation, we get the following condition on \(g(\boldsymbol{\xi },\boldsymbol{\eta }) \) [1]:
$$ \mathbf{f}(\boldsymbol{\xi },\boldsymbol{\eta })=h\bigl( \vert \boldsymbol{\xi }+\boldsymbol{\eta } \vert ,\boldsymbol{\xi }\bigr) ( \boldsymbol{\xi }+ \boldsymbol{\eta }) $$(2.13)for a scalar valued function \(h( \boldsymbol{\xi }+\boldsymbol{\eta },\boldsymbol{\xi })\). From (2.13) the elastic nature of f can be clearly observed; in fact, the interaction force depends only on the initial relative position between points x and \(\mathbf{x}' \) and the modulus of their relative position in the deformed configuration \(\Omega _{t}\) at time t, \( \boldsymbol{\xi }+\boldsymbol{\eta } \). Under the isotropy hypothesis, the general dependence on vector ξ can be substituted with a dependence on \(\boldsymbol{\xi } \):
$$ \mathbf{f}(\boldsymbol{\xi },\boldsymbol{\eta })=h\bigl( \vert \boldsymbol{\xi }+\boldsymbol{\eta } \vert , \vert \boldsymbol{\xi } \vert \bigr) ( \boldsymbol{\xi }+\boldsymbol{\eta }). $$(2.14)Thus the bond forces can be considered as modeling a spring network that connects each point \(\mathbf{x}\in \Omega _{0} \) pairwise with \(\mathbf{x}' \in B_{\delta}(\mathbf{x}) \cap \Omega _{0} \).

Linear elastic material: if \(\boldsymbol{\eta } \ll 0 \), then the peridynamic kernel can be linearized around \(\boldsymbol{\eta }=\boldsymbol{0} \) so that
$$ \mathbf{f}(\boldsymbol{\xi },\boldsymbol{\eta })\approx \mathbf{f}(\boldsymbol{ \xi },\boldsymbol{0})+ \frac{\partial \mathbf{f}(\boldsymbol{\xi },\boldsymbol{\eta })}{\partial \boldsymbol{\eta }} \bigg_{\boldsymbol{\eta }=\boldsymbol{0}}\boldsymbol{\eta }; $$(2.15)a secondorder micromodulus tensor can be defined as
$$ \boldsymbol{C}(\boldsymbol{\xi })= \frac{\partial \mathbf{f}(\boldsymbol{\xi },\boldsymbol{\eta })}{\partial \boldsymbol{\eta }} \bigg_{\boldsymbol{\eta }=\boldsymbol{0}}= \boldsymbol{\xi }\otimes \frac{\partial f(\boldsymbol{\xi },\boldsymbol{\eta })}{\partial \boldsymbol{\eta }} \bigg_{ \boldsymbol{\eta }=\boldsymbol{0}}+f_{0}, $$(2.16)where, to simplify the notation, \(f_{0}=f(\boldsymbol{\xi },\boldsymbol{0}) \). After an application of linear momentum balance (2.6), elasticity (2.10), and isotropy condition, the micromodulus tensor can be expressed in the form [1]
$$ \boldsymbol{C}(\boldsymbol{\xi })=\lambda \bigl( \vert \boldsymbol{\xi } \vert \bigr)\boldsymbol{\xi }\otimes \boldsymbol{\xi }+f_{0}. $$(2.17)Thus, for a linearized hyperelastic material, its peridynamic kernel shows the following structure:
$$ \mathbf{f}(\boldsymbol{\xi },\boldsymbol{\eta })= \mathbf{f}(\boldsymbol{\xi }, \boldsymbol{0})+ \bigl( \lambda \bigl( \vert \boldsymbol{\xi } \vert \bigr) \boldsymbol{\xi }\otimes \boldsymbol{\xi }+f_{0} \bigr) \boldsymbol{ \eta }. $$(2.18)
3 Peridynamic models for hyperelastic materials
Looking at the literature regarding peridynamic elastic theory, different integral kernel (i.e., pairwise force \(\mathbf{f}(\boldsymbol{\xi },\boldsymbol{\eta }) \)) structures can be found; in the following, a survey of various employed expressions for peridynamic kernels is detailed. For all the listed models, the pairwise force \(\mathbf{f}(\boldsymbol{\xi },\boldsymbol{\eta }) \) vanishes for \(\boldsymbol{\xi } > \delta \); such a condition on f, even if not explicitly stated, must be considered to hold. In [1] a simple model for threedimensional microelastic isotropic peridynamic material subject to antiplane shear is proposed to predict the onset of fractures:
where c is a constant depending on the material, and \(u_{*} \) is a parameter such that if the displacement of the relative point in the deformed configuration exceeds the threshold level \(u_{*} \), then the associated bond is broken, and fracture can emerge. Another model proposed in [1] for isotropic microelastic peridynamic materials is described by the potential function
so that
where \(a(\boldsymbol{\xi }) \) is a scalar function.
In [49] a peridynamic kernel for the socalled prototype microelastic brittle (PMB) material is proposed; the pairwise force for an isotropic PMB material is conceived as linearly proportional to the finite stretch \(s:= (\boldsymbol{\xi }+\boldsymbol{\eta }\boldsymbol{\xi })/\boldsymbol{\xi } \), so that
where \(\boldsymbol{n}:=(\boldsymbol{\xi }+\boldsymbol{\eta })/\boldsymbol{\xi }+ \boldsymbol{\eta } \), and the scalar function f is defined as follows:
with
c is the micromodulus constant, and \(\mu (s, t) \) is a function that records if at a certain time \(t'\leq t \), the bond stretch s associated with the pair \((\mathbf{x},\mathbf{x}') \) has exceeded the critical value \(s_{0} \): if so, then the bond is considered broken, and a zerovalued pairwise force is assigned for all \(t \geq t' \). By comparing the strain energy density value obtained under isotropic extension with peridynamics and classical continuum theory the following value of c is readily found [49]:
where k is the material bulk modulus. Over time, following the same approach as in [28], for the microconductivity function, the micromodulus constant c has been generalized to \(c(\boldsymbol{\xi },\delta ) \), i.e., to a micromodulus function, to describe in more detail how pairwise force intensity distributes over the peridynamic horizon \(B_{\delta}(\mathbf{x}) \); intuitively, the force intensity decreases as the distance between x and \(\mathbf{x}' \in B_{\delta}(\mathbf{x}) \) increases, but it can do it in various ways. The micromodulus function is defined as
where \(c(\boldsymbol{0},\delta ) \) is a constant obtained by comparing peridynamic strain density with the classical mechanical theories [73], and \(k(\boldsymbol{\xi },\delta ) \) is a function defined on \(\Omega _{0} \) such that (to meet the momentum conservation and isotropy conditions) [77]
where \(\Delta (\boldsymbol{\xi }) \) is the Dirac delta function. The simplest adopted form for the micromodulus function is \(c(\boldsymbol{0},\delta )k(\boldsymbol{\xi },\delta )=c\boldsymbol{1}_{B_{\delta}(\mathbf{x}')} \), where \(\boldsymbol{1}_{A} \): \(X \rightarrow \mathbb{R}\) is the indicator function for a subset \(A \subset X \), i.e.,
this kind of micromodulus function, referred as cylindrical (see Fig. 3a), corresponds to the peridynamic kernel in (3.4). In [7] a triangular micromodulus function (see Fig. 3b) is introduced, characterized by a linear function \(k(\boldsymbol{\xi },\delta ) \) of the following type:
Since the most common discrete physical systems are characterized by a Maxwell–Boltzmann distribution, to include this behavior in peridynamics, a normal micromodulus function (see Fig. 3c)
is proposed in [74], whereas in [77] a quartic polynomial micromodulus function
(see Fig. 3d) is proposed. Therefore peridynamic kernels like those proposed in [7, 49, 77], and [74] can be included in a generalized prototype microelastic brittle (PMB) material kernel characterized by the form
An interesting survey and analysis of the effects of different micromodulus functions on fracture development can be found in [73]. In [72], peridynamic kernels for failure analysis of material nanostructures are presented: a pairwise force model is proposed for an isotropic Blatz–Ko rubbery membrane and fiber materials characterized by van der Waals interactions, respectively,
and
where α, β, c are constants, and \(g(\boldsymbol{\xi }) \) is a continuous function that takes into account the possibility of different elastic responses for different characteristic bond lengths. In [75] the peridynamic elastic material is thought as composed of a superposition of elastic rods with elastic micromodulus function \(c(\boldsymbol{\xi },\delta ) \) that connects pairwise each point belonging to the body. Starting from Newton’s second law applied to each rod connecting the point x with its family, we obtain the following constructive integral kernel:
In [43, 46], where one and twodimensional nonlinear elastic materials have been considered in the development of a numerical approximation method for the resolution of the peridynamic problem, the following integral kernel structure of convolution type is proposed:
the micromodulus function \(C(\boldsymbol{\xi }) \) is even, whereas \(w(\boldsymbol{\xi }+\boldsymbol{\eta }) \) is odd, and both are global Lipschitz continuous functions; specifically, the authors choose \(w(\boldsymbol{\xi }+\boldsymbol{\eta })= (\boldsymbol{\xi }+\boldsymbol{\eta })^{r} \), where \(r >1 \) is an odd number. The peridynamic kernel results as follows:
In [78] and [79] the following nonlinear peridynamic integral kernel in \(\mathbb{R}^{n} \) for an hyperelastic material is considered by establishing the nonlinear elastic potential function
where n is the space dimension (practically, \(n \in \{1,2,3 \} \)), p and α real numbers such that
and \(\Psi (\boldsymbol{\xi },\boldsymbol{\eta }) \) is a sufficiently smooth perturbation function. Considering that \(\mathbf{f}=\nabla _{\boldsymbol{\eta }}\Phi \) for hyperelastic materials, the following structure for the constitutive pairwise force is obtained:
It is worth noting that for this expression and in general for all pairwise forces defined by an elastic potential function such that
and \(\mathbf{u}_{0} , \mathbf{v}_{0} \in L^{2} (\mathbb{R}^{N} ; \mathbb{R}^{N} )\), the associated Cauchy problem in (2.4) admits a unique, stable, and energybounded weak solution, so that the peridynamic equation is well posed; for a detailed treatment and rigorous proofs of the aforementioned wellposedness of such type of peridynamic models, see [78].
Then after neglecting minor differences, the pairwise force models listed below could be thought as representatives of the peridynamic kernel structures commonly adopted in literature for the modeling of hyperelastic materials. An interesting feature of the listed models is that even though each of them ensures compliance with the basic mechanical principle, i.e., conservation of linear and angular momentum, rather different structures of the peridynamic kernel are employed, so that it appears surely intriguing to analyze both main shared features and differences between such different models.
4 Features of kernel structure
4.1 Nonlocality
As stated earlier, the key feature of peridynamics is nonlocality. In the previous section, the role of nonlocality has been highlighted by the fact that internal forces acting at a point x at every time t are determined by a process of integration over a finite region; but differences between the classical (local) theory of continua and peridynamics may be emphasized within the framework of a more fundamental subject, kinematics. The crucial difference between classical mechanics and peridynamics relies on the role of \(\nabla _{\mathbf{x}}\mathbf{u}\) on the motion of points. Given the displacement function \(\mathbf{u}(\mathbf{x},t) \), we get that the deformed position of a point in \(\Omega _{0} \) is described by the motion mapping \((\mathbf{x}+\mathbf{u}(\cdot ,t) ) \) that maps points in the reference space to points in the geometrical space; the schism between classical local theory and peridynamics involves the Taylor expansion of the motion of a socalled undeformed fiber \(\mathbf{x}+\ell \boldsymbol{e_{R}} \) [80], where ℓ is the length of the fiber, and \(\boldsymbol{e_{R}} \) is a unitary vector in \(\Omega _{0}\) representing the fiber direction. Let \(\mathbf{x}' \) be a point in \(\Omega _{0}\) individuated by a undeformed fiber, that is, \(\mathbf{x}':= \mathbf{x}+\ell (\boldsymbol{e_{R}}) \). After performing a Taylor expansion of the motion of the fiber with respect to the base point x, we obtain the following expression:
where
\(\mathbf{y}':=\mathbf{y}+\boldsymbol{e} \) (with e being, in general, nonunitary) represents the corresponding deformed fiber in \(\Omega _{t}\), and I is the identity matrix. Considering the limit case \(\ell \rightarrow 0 \), the transformation law from an undeformed fiber into a deformed fiber results in [80] (see Fig. 4a)
where time dependence of u has been omitted; transformation laws for surfaces and volumes in \(\Omega _{0}\) are obtained similarly. Given a unitary length of undeformed fiber (\(\ell =1\)), so that
its stretching can be defined, as usual, by \(s:= \boldsymbol{e}/\boldsymbol{e_{R}}\), and therefore
Note that the stretch of the fiber is clearly governed only by local measures. Since elastic forces are in direct relationship with the stretch, it follows that the dynamical evolutionary problem is governed by local concepts. Therefore in classical continuum mechanics, material body kinematics relies on assuming the existence of \(\nabla _{\mathbf{x}}\mathbf{u}\) on \(\Omega _{t} \) for every time \(t \in [0,+\infty ) \), so that a Taylor expansion for the motion at every point in the body can be performed. In such a way, kinematics of x and its neighborhood are defined by an affine mapping between reference and spatial points, defined by \(\nabla _{\mathbf{x}}\mathbf{u}\). In short, the limits of classical mechanics stem directly from the requirement that the motion of a material body must be described by a continuoustime sequence of differentiable manifolds. Looking at peridynamics elasticity theory, it is prominent that \(\nabla _{\mathbf{x}}\mathbf{u}\) does not play any role in the description of motion of points, so that the stretch of a fiber is purely described by a finite (nonlocal) and generally nonlinear quantity, the bond stretch \(s= \boldsymbol{\xi }+\boldsymbol{\eta }/\boldsymbol{\xi } \). Looking at the peridynamics models listed above, we can see that all pairwise forces are functions of bonds stretch, i.e., can be expressed as
so that from a finite (nonlocal) definition of fiber stretching (see Fig. 4b) a nonlocal dynamics follows for every reference point in \(\Omega _{0}\). No prescriptions are imposed on the displacement function \(\mathbf{u}(\mathbf{x},t) \), and, consequently, the motion of the material body can be described by nondifferentiable or even discontinuous mapping (with respect to the space variable); obviously, such mathematical freedom is reflected by the variety of peridynamic kernels adopted in the literature.
4.2 Impenetrability of matter principle
From the mathematical freedom allowed in peridynamics, various types of integral kernels emerge, sharing, however, a common structure: each model falls into the class of rational functions of variables \(\boldsymbol{\xi }+\boldsymbol{\eta }\) and ξ (the micromodulus function structure \(c(\boldsymbol{\xi },\delta ) \), which can be quite general, can be neglected in this classification because its structure makes it irrelevant in the following discussion on singularities and impenetrability of matter). In the following, we will briefly discuss certain features derived from the presence of the denominator with respect to a fundamental physical principle, the impenetrability of matter. To be physically consistent, the defined peridynamic kernel \(\mathbf{f}(\boldsymbol{\xi },\boldsymbol{\eta }) \) must necessarily respond to the basic principle of the impenetrability of matter, that is, two material bodies cannot occupy the same position at the same time. In classical continuum theory the condition of impenetrability is imposed via kinematics constrain on \(J:=\operatorname{det}(\nabla _{\mathbf{x}}\chi _{t})\), where \(\chi _{t}\) is the deformation function (\(\chi _{t}:=\mathbf{x}+\mathbf{u}(\mathbf{x},t) \)) such that \(J>0 \). Noting that in classical continuum mechanics \(\mathbf{u}(\mathbf{x},t)\) is assumed to be a smooth function (so that \(\nabla _{\mathbf{x}}\chi \) is continuous) and considering that \(J=1\) in the reference configuration, the kinematic constrain \(J>0 \) implies the impossibility for every volume element Δv belonging to \(\Omega _{0} \) (which is individuated by a vector basis) to change its orientation with time. Indeed, by continuity it would imply that at a certain \(t=\tau \), \(J=0\), i.e., Δv collapses into a plane (or a line), so that points in the volume have been compenetrated. The same reasoning is analogous for a surface element Δs. Obviously, for peridynamics theory, this type of constraint has no meaning. From a different perspective, impenetrability condition is granted by the functional form of \(\Phi (\mathbf{x}'\mathbf{x}, \mathbf{u}(\mathbf{x'}, t)\mathbf{u}( \mathbf{x}, t))\) (see Eq. (3.20)), or better, by the choice of its singular kernel. Hence at any time t, the energy \(E[\mathbf{u}](t) \) associated with \(\Omega _{t} \), given by
satisfies
Therefore a physical configuration where two points penetrate each other is energetically inaccessible. Looking at the expression for \(E[\mathbf{u}](t) \) and given the finiteness of the velocity \(\partial _{t} \mathbf{u}\) of points, the energetic condition of impenetrability relies upon the structure of the elastic potential Φ (which in turn determines the peridynamic kernel structure). A necessary condition for impenetrability is the possibility of the integral terms \(\int _{B_{\delta}(\mathbf{x})} \Phi (\boldsymbol{\xi }, \boldsymbol{\eta }) \,d \mathbf{x'} \) to be singular. Looking at Table 1, we can notice that the only source of singularity is the presence of denominator of type \(\boldsymbol{\xi }^{\beta }\) for some \(\beta >0\); in fact, \(\boldsymbol{\xi }^{\beta }\rightarrow 0 \) during the integration process over \(B_{\delta}(\mathbf{x}) \). Consequently, integral kernels as in (3.1), (3.3), and (3.19) can never reach a singular value. Focusing on the integral kernel (3.22), which is the most general model (including both linear and nonlinear material behavior) for which the wellposedness of the peridynamic equation has been proven, the energetic version of the impenetrability condition seems to be suitable; in fact, solutions of this model satisfy the following energetic condition [78]:
so that, given a configuration with finite energy, all motions that imply compenetration are naturally excluded. The possibility for the elastic potential function of reaching a singular value as a result of the integration over \(B_{\delta}(\mathbf{x}) \) is a necessary but insufficient condition for impenetrability, and a closer investigation is necessary to prove that condition (4.8) holds for the considered peridynamic kernel. It is interesting to highlight that such a singularity condition for \(\int _{B_{\delta}(\mathbf{x})} \Phi (\boldsymbol{\xi }, \boldsymbol{\eta }) \,d \mathbf{x'}\) does not hold when the integration process is carried out by numerical quadrature methods; in fact, \(\boldsymbol{\xi } \) is a meshdependent quantity and is always a finite number. The conciliation of such a discrepancy between continuum and discrete peridynamic theories, without the trivial solution of indefinitely increasing mesh density (which is obviously unfeasible), would be surely an interesting research topic.
4.3 Nonlinearities and fractures
What clearly distinguishes up peridynamic kernels listed in Table 1 is linearity/nonlinearity with respect to the relative deformed position vector \((\boldsymbol{\xi }+\boldsymbol{\eta }) \). The nonlinearity of the integral kernel is meaningful, not only for modeling the physical behavior of those materials exhibiting a nonlinear stress–strain response or when really interesting phenomena (like solitons [81, 82]) appear, but also because it may be involved in predicting the onset of fractures in a material body. Let us consider the pairwise force equation (3.14), reported below for convenience, as representative of linear models
where
we will refer to it as linear kernel; it is worth noting that the micromodulus function \(c(\boldsymbol{\xi },\delta ) \) is not a source of bond stretch nonlinearity because, once a bond \((\mathbf{x},\mathbf{x}')\equiv \bar{\boldsymbol{\xi }} \) is fixed, \(c(\bar{\boldsymbol{\xi }},\delta )\) reduces to a constant. Let us consider, instead, as representative of nonlinear models, the pairwise force equation (3.22), reported below for convenience:
We will refer to it as the nonlinear kernel. Regarding the linear kernel, it is notable that the only role of the function \(\mu (s,t) \) is modeling crack formation and development in the material, and that the threshold value \(s_{0} \) is only determined by measurable quantity [49]. If we consider the equivalent formulation of \(\mu (s,t) \) proposed in [83]
where
then the mathematical wellposedness of the peridynamic equation related to the linear integral kernel with bondbraking function \(\mu (s,t) \) can be proven (see [83] for a rigorous proof; for a different reformulation of the bondbraking function \(\mu (s,t) \), where no time integration is involved and for which mathematical wellposedness of the peridynamic equation is also proved, see [84]). Notwithstanding its mathematical wellposedness, we can notice, looking at the linear pairwise force plot (see red line in Fig. 5), how this kind of model looks a bit artificial; in fact, a physical phenomenon described by a linear model is such that its behavior is indefinitely preserved, so that, within this setting, the onset of abrupt events (like cracks are) is unreasonable, except with a “forced from the outside” intervention. Considering, instead, the nonlinear kernel, we can see how this kind of pairwise force structure allows inherently the possibility of modeling sudden force intensity (and concurrently potential energy) escalations with respect to relatively low displacements. Potential energy peaks may be naturally identified with abrupt events, like cracks, which are phenomena that require great energy localization into the bound to take place (see black line in Fig. 5). Within the context of nonlinear kernels, the aforementioned nonlinear crack approach is capable of predicting cracks formation independently from external parameters, like \(s_{0} \), and regardless of the degree of regularity of the initial condition, but, on the other hand, it is not able to propagate cracks unless a bondbreaking function, as \(\mu (s,t) \), is introduced.
5 Peridynamics in fluids: future perspectives
Now the perspective of rigorously extending the peridynamics formalism to fluids is given. The main motivation for such an extension is to develop a model for fluids that allow us to model nonlocal phenomena typically seen in complex fluids (like blood, polymeric flow, etc.), and at the same time to take the advantage of the mathematical soundness of PD theory with respect to arising discontinuities.
As it is well known, fluids and solids (i.e., elastic materials) exhibit very different physical behavior. Let us consider a simple clarifying example. If an elastic (solid) material is subjected to a pure shear deformation (e.g., the material is placed between two plates forced to move in opposite directions); we would expect, and it is what physically happens, that an equilibrium configuration will be reached in a certain amount of time, in the sense that the solid assumes a well definite shape so as to balance plate exerted forces. Now, if we would repeat the experiment for a fluid, then as time goes on, it keeps sliding with the plates, and no equilibrium shape is reached. On the other hand, looking at the fluid velocity, we can observe that each point assumes a welldefined average velocity profile, so that an equilibrium configuration is reached in the velocity field. We can conclude that in solids the “preferred” kinematic quantity is the displacement vector u, whereas in fluid it is the infinitesimal variation of displacement with time, i.e., the velocity \(\mathbf{u}_{t}\) assumes a key role. Such a fundamental distinction reflects, in the classical continuum mechanics framework, the structure of the governing equations for fluids and solids, respectively.
The main three ingredients in mechanical governing equations are kinematics relations, physically conserved quantities, and constitutive relations. For simplicity, in the following discussion, we neglect thermodynamic considerations, postponing a more comprehensive treatise for future investigations. Kinematics of elastic materials is essentially described by the deformation gradient:
recalling that \(\chi (\mathbf{x},t):= \mathbf{x}+\mathbf{u}(\mathbf{x},t)\). For the balance equations, we adopt a referential structure, so that the mass, linear momentum, and angular momentum conservation read
where \(J:= \det \mathbf{F}\), and the subscript R denotes that a given quantity is considered in the reference configuration. Indeed, \(\rho _{R}\) is the density at point x in reference configuration, and \(T_{R}\) is the first Piola stress tensor. We assume the following constitutive relation:
where \(T_{R}\) is a function directly linking the stress at a point of the body to its deformation gradient. Therefore, considering equations (5.1), (5.2), and (5.3) given below, fully describing the evolution of an elastic body, the fundamental role of F can be highlighted. From that it appears clearly that \(\mathbf{u}(x,t)\), i.e., the displacement of the material point x from its reference configuration, assumes a preferred status in elastic bodies due to its close relation with F, namely \({\mathbf{F}} := \nabla _{\mathbf{x}}\chi = {\mathbf{I}} + \nabla _{\mathbf{x}} \mathbf{u}\).
Now let us consider kinematics, balance equations, and constitutive relation for incompressible fluids. Due to the absence of a physical meaningful reference configuration, kinematic relations are expressed only as a function of the geometrical space variables \({\mathbf{z}} \in \mathbb{R}^{n}\) (we use the symbol z instead of the classical x to sharply differentiate the geometrical space variable from the reference space variable x). Now, identifying \(\chi _{t} (\mathbf{x},t)=\chi ((\chi ^{1}({\mathbf{z}},t),t)\) with \({\mathbf{v }}({\mathbf{z}},t)\), we express the motion of a given particle of a fluid continuum as follows:
where \(D/Dt\) denotes the material derivative of the field \({\mathbf{v}}({\mathbf{z}},t)\), and \(\nabla _{\mathbf{z}}\) is the gradient operator with respect to geometrical space variables. The balance equations are consequently expressed as [80]
where T is the Cauchy stress tensor. For fluids that are in general nonNewtonian, we assume the following constitutive relation:
where T is a function that links the stress at a fluid point to the stretching tensor
which represents the stretching and angle changing rate of material fibers. A socalled Eulerian description of fluids has been presented. By looking at the equations that govern fluid motion we can notice the relevance of the velocity v. Being \(\chi _{t} (\mathbf{x},t)= \mathbf{u}_{t}(\mathbf{x},t)\) and \(\chi _{t} (\mathbf{x},t)\equiv {\mathbf{v}}({\mathbf{z}},t)\), the key role of \(\mathbf{u}_{t}\) in fluid phenomenology is recovered. Thus, in the extension of the peridynamics formalism toward fluids, we expect that the velocity must possess a key role in the governing equation.
A first attempt to extend PD theory to fluids could be modeling the divergence of internal forces with a nonlocal term of integral type, \(\int _{B_{\delta}}\mathbf{f}\,dV\), similarly to what has been done for elastic materials PD theory. However, unlike what happens for the Lagrangian form of linear momentum balance equation (5.2)_{2}, where all spatial derivatives (i.e., \(\nabla _{\mathbf{x}}\cdot \)) are replaced by the integral force term, this step would not work for the Eulerian form of linear momentum balance (5.5)_{2}, where \((\nabla _{\mathbf{z}} \cdot )\) does not appear only in the internal force term but also is inherent in fluid kinematics. Hence it is not surprising that the fluid peridynamics statebased models proposed in [12, 19] are based on a Lagrangian description of fluid and that a truly Eulerian peridynamics formulation has not been proposed yet.
An interesting feature brings together the proposed fluid PD models: if in elastic material the peridynamics horizon \(B_{\delta }(\mathbf{x})\) is defined in the reference configuration and is composed of the same material points during all body motion, in fluid, PD horizon maintains its spherical shape at every time t, so that different points at different time instants may belong to the horizon. The main explanation (see [19]) of such a divergent property of \(B_{\delta}(\mathbf{x})\) relies on the fact that in fluids where deformations are very huge, it would be nonphysical to let points x and \(\mathbf{x}'\) such that \(\mathbf{x}\mathbf{x}'\leq \delta \) in \(\Omega _{0}\) to keep interaction even if at a certain time, say \(t=\tau \), \(\mathbf{y}=\chi (\mathbf{x})\) and \(\mathbf{y}'=\chi (\mathbf{x}')\) in \(\Omega _{\tau}\) are such that \(\mathbf{y}\mathbf{y}' \gg \delta \). Such differences between fluid and solid in the definition of the PD horizon may be regarded in a different light, by the introduction of fading memory concept. Fading memory in materials was firstly introduced by Boltzmann [85] and Volterra [86] and formalized by Colemann and Noll [87] in the framework of continuum mechanics; the main assumption is that the stress in a material body depends upon the history of its past configurations up to a certain remembered time. Specifically, the concept of fading memory is based on the following argument: the stressfree configuration for the elastic material cannot be recovered instantaneously as soon as the interaction has acted. Indeed, liquid materials instantly “forget” their already acquired deformations since any state is an equilibrium state: this is why liquids are considered without memory. On the contrary, elastic materials do not forget the history of their deformations at all. So their memory does not fade. In this context the difference between elastic materials and fluids is related to their memory: an elastic material is such that it remembers its “original” configuration, i.e., possesses infinite memory, and thus tries to restore its initial shape at any time. On the opposite hand, a fluid is a material with zero memory, so that a reference or “original” configuration cannot be found [88].
In the following, we present a nonrigorous but interesting and stimulating perspective of the application of the concept of fading memory in the development of a peridynamics model for fluids. Consider a material body and let the parameter s, with the dimension of time, denote the memory of the material, so that the material can remember only up to time \(ts\). So if \(s\rightarrow \infty \), then the material is perfectly elastic, whereas if \(s \rightarrow 0\), then we obtain a fluid behavior. Extend the displacement function extended in the time variable to \(\tilde{\mathbf{u}}(\mathbf{x},t): \Omega _{0} \in \mathbb{R}^{n} \times \mathbb{R}\rightarrow \mathbb{R}^{n}\) such that
and let us consider the consequent extension of \(\chi (\mathbf{x},t)\) so that \(\chi (\mathbf{x},t):=\mathbf{x}+\tilde{\mathbf{u}}(\mathbf{x},t)\). In standard PD theory the internal force acting at point x at time \(t=\tau \) is of elastic nature and directly depends on the deformation of \(B_{\delta}(\mathbf{x})\) at \(t=\tau \). A straightforward extension of this peridynamics concept of internal force to materials with memory s is to consider the deformation of the peridynamics horizon with respect to its last remembered configuration
Consequently, internal forces acting at x are related to the current deformation (at time t) of \(B_{\delta}(\mathbf{x},ts)\), which is thus taken as a reference configuration. It is worth noting that in this new framework the horizon assumes a more geometrical structure, in contrast with the classical definition, by which it is defined as a set of fixed material points. At the moment, boundaries are neglected, so that the horizon is never empty, i.e.,
Given the above considerations, it seems reasonable to extend the classical PD bondbased model to a generic material with memory s maintaining the same physical structure. Therefore the pairwise force f is regarded as a function of the relative position between x and a generic point in \(B_{\delta}(\mathbf{x},ts)\) in the reference configuration (time \(ts\)) and of their current relative displacement (time t) with respect to the reference configuration. As a consequence, the peridynamics balance of the linear momentum equation follows:
If a solid material is considered, i.e., \(s\rightarrow \infty \), assuming necessary smoothness with respect to the time variable for all involved functions, we get
remembering that, as \((ts) \rightarrow  \infty \), \(\tilde{\mathbf{u}}( \cdot , ts) \rightarrow \mathbf{0 }\), and thus \(B_{\delta}(\mathbf{x},ts) \ni {\mathbf{z}} \equiv \mathbf{x}' \in B_{ \delta }(\mathbf{x})\). The standard bondbased PD equation has been recovered. If the limit of (5.10) as \(s\rightarrow 0\) is taken, then we expect to obtain, almost formally, a peridynamic equation for incompressible fluids. Lets first consider a firstorder Taylor expansion in the time variable, so that
Thus, under suitable regularity assumptions with respect to the time variable, letting \(s\rightarrow 0\), it follows that
where δs is an infinitesimal time interval (\(\delta s \ll 1 \)) we can get rid of by a slightly modification of (5.10), and where the correspondence \({\mathbf{v}}({\mathbf{z}},t) \equiv \chi _{t}(\chi ^{1}({\mathbf{z}},t))\) has been employed. It is interesting to note that, similarly to classical constitutive relations for fluid (5.6), the actual velocity difference between x and others surrounding point in its horizon is involved in the peridynamic kernel and thus determines the constitutive behavior of the fluid. By employing the concept of fading memory the key role of velocity in fluid material has been recovered, almost formally. On the other hand, a redefinition of the peridynamic horizon from a set of material points to a purely geometrical one brings extra complications. Indeed, in (5.13) the geometric and material velocity is mingled so that the model is neither Lagrangian nor Eulerian. We must stress that the present formulation is only suitable for describing isotropic and fully periodic flows. Future studies will include the description of the boundaries and the role of the choice of the specific strategy for enforcing noslip conditions in the peridynamic realm.
6 Conclusions
A widebreath review of bondbased peridynamic theory has been presented. Features, applications, and numerical methods involved in bondbased and statebased PD have been briefly described; then the paper focuses on the bondbased PD formulation of solid mechanics. Basic physical principles that shape peridynamics integral kernels are described. Then a review of the most common kernels employed in the literature is presented. By a comparison of the various kernel, it has been shown that, apart from the micromodulus function, which can be quite general, all the models share a rational function structure. It has been shown that PD kernels are derived from exact kinematics, i.e., at all scales, no approximations of displacement of points are assumed. Implications of material impenetrability constrain on the kernel structures have been analyzed. A necessary but insufficient condition for material impenetrability has been related to the presence of a denominator of type \(\boldsymbol{\xi }^{\beta}\) with some real number β, which goes to zero in the analytical integration process. On the other hand, in a numerical integration process, this condition has no meaning (the denominator is mesh dependent and thus never reaches a zero value), so that future research in numerical peridynamics may be directed toward the resolution of such discrepancy. The potential role of employing a nonlinear PD kernel in predicting the onset of fractures has been explored. Cracks formation modeling capacity of widely employed linear kernels supplemented with a bondbreaking function is qualitatively compared with a nonlinear kernel. As a result, it appears that the presence of nonlinearity in the relative displacement can reproduce inherently the high potential energy peaks that indicate the formation process of cracks. Further numerical studies on nonlinear kernels will be performed to test their accuracy in predicting crack formation. Finally, some research perspectives on the extension of bondbased PD toward fluids have been offered. The prominent behavior difference between solids and fluids has been related to the preferred status of deformation in solids and deformation rate in fluids. Then the implications of extending the peridynamics formalism toward fluids have been analyzed via the materials memory concept. In this unifying framework the main ideas of peridynamics have been extended formally toward fluids. The key role of the deformation rate has been recovered, but, on the other end, the necessary redefinition of the PD horizon from a material set to a geometric one leads to a PD governing equation in which geometric and material quantities are blended. Future research will be directed toward a more clear understanding of the implications of PD nonlocality on the relation between Lagrangian (material) and Eulerian (geometric) descriptions of materials.
